'Fog harp' makes water out of thin air

Updated 10th April 2018
Credit: Virginia Tech
'Fog harp' makes water out of thin air
Written by Jacopo Prisco, CNN
In some of the most arid regions of the world, from the Sahara to the Andes, special nets have long been used to catch moisture from the air, turning fog into drinking water.
These fog harvesters are put up against wind streams to catch microscopic droplets which gather and merge on a fine mesh until they have enough weight to travel down into a water tank. They provide essential access to water to many communities, and the technology behind them has evolved over the years to offer a higher yield, resistance to the elements and a reduced need for maintenance.
Now, researchers at Virginia Tech University have developed a new design that they say has three times the efficiency of regular fog nets. They call it a "harp," because its vertical pattern of wires makes it resemble the string instrument.
"Our long-term goal is that the fog harp can completely replace the classical net design, resulting in cheaper fog harvesters that end up collecting substantially more water," Jonathan Boreyko, one of the authors of the study at Virginia Tech, said in an email interview.
A schematic of the fog harp design, with the wires held under tension within a frame. Credit: Virgina Tech

Improved design

The problem with the classical design, according to Boreyko, is that the fog droplets end up getting stuck in the holes of the net, because the horizontal wires obstruct their path on the way down into the reservoir. The net then becomes heavily clogged with water, which makes it impermeable to the wind. As a result, the foggy wind simply flows around the net, instead of through it, which reduces the amount of fog that can be collected.
The fog harp consists instead of an array of vertical wires held under tension within a frame, without any intersecting wires, so that droplets can easily slide down at very small sizes.
"This solves the clogging issue to ensure that the wind can continuously flow through the harp for efficient fog capture," said Boreyko.
The new design takes inspiration from plants that use fog harvesting to supplement their water intake, such as redwood trees on the California coast. "Most trees and plants have arrays of branches and leaves that run parallel to each other. Our harp design is therefore, in many ways, analogous to what nature is already doing to efficiently manage water. The classical net structure, on the other hand, is an inefficient design that nature has learned to avoid," said Boreyko.

Threefold increase

Boreyko and his team ran a series of tests comparing scale-model harps and traditional nets, with artificial fog emanating from an ultrasonic humidifier. The team published their findings in the journal ACS Applied Materials & Interfaces.
"Our best fog harp was able to capture three times the amount of water harvested by a classic net structure of equivalent dimensions, using the exact same fog conditions," said Boreyko.
"The fog harp never showed any appreciable clogging and was able to continuously drain droplets as small as one millionth of a liter into the bottom collector, while the equivalent net got heavily clogged with water, which disrupted the passage of the fog stream."
fog_harp_Josh Tulkoff strings protoype

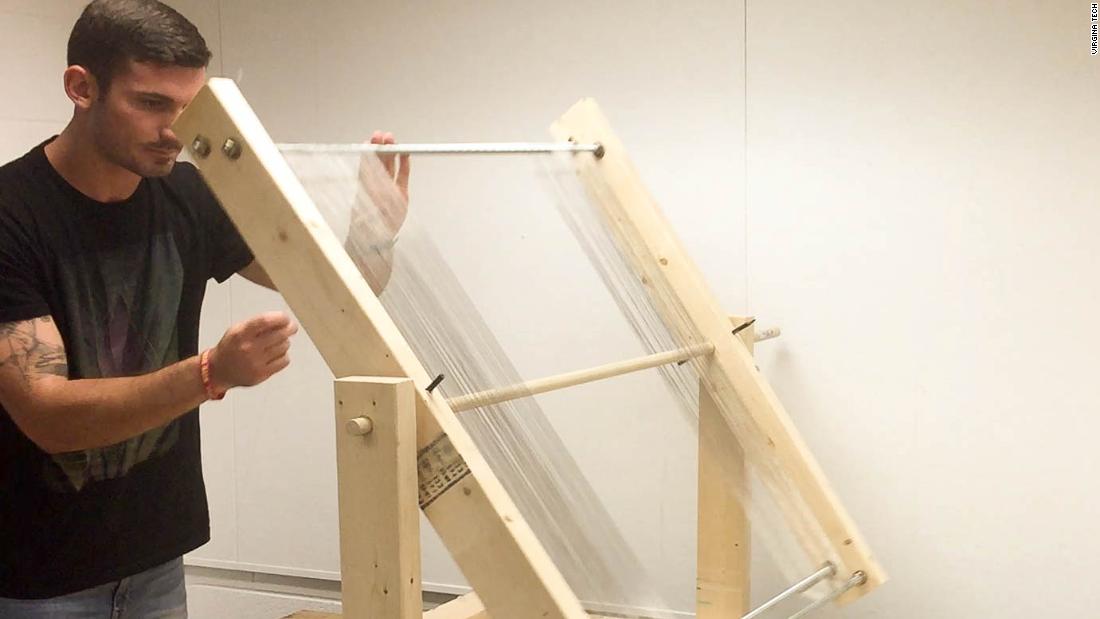

Josh Tulkoff from the Virginia Tech research team strings a fog harp prototype developed by Professor Brook Kennedy. Credit: Virgina Tech
Although the design has shown potential at the model scale, real-world testing is now required. Study co-author Brook Kennedy and his team built a full-scale prototype by winding wire around threaded bolts within a 1-meter squared frame, and will test it alongside an equivalent mesh netting at Kentland Farm, an area close to the Virginia Tech campus known for its foggy weather.

A worldwide issue

Fog nets have been used since the 1980s in many parts of the world, including Africa, South America, Asia, the Middle East, and California. The largest fog collection project in the world is in Morocco, where over 600 square meters of nets provide drinking water to hundreds in a region severely hit by droughts induced by climate change.
With water crises looming in many parts of the world, devising innovative and sustainable ways to gain access to clean water is essential.
Its unique design could help the fog harp reach into new areas, and cut costs where current fog harvesters are in use. "A harp design only needs half as much wiring as a mesh netting," said Boreyko, "Therefore, if a cost-effective method for wiring a harp can be obtained, the material costs of a fog harp should be less than an equivalent net."
